APPLICATION

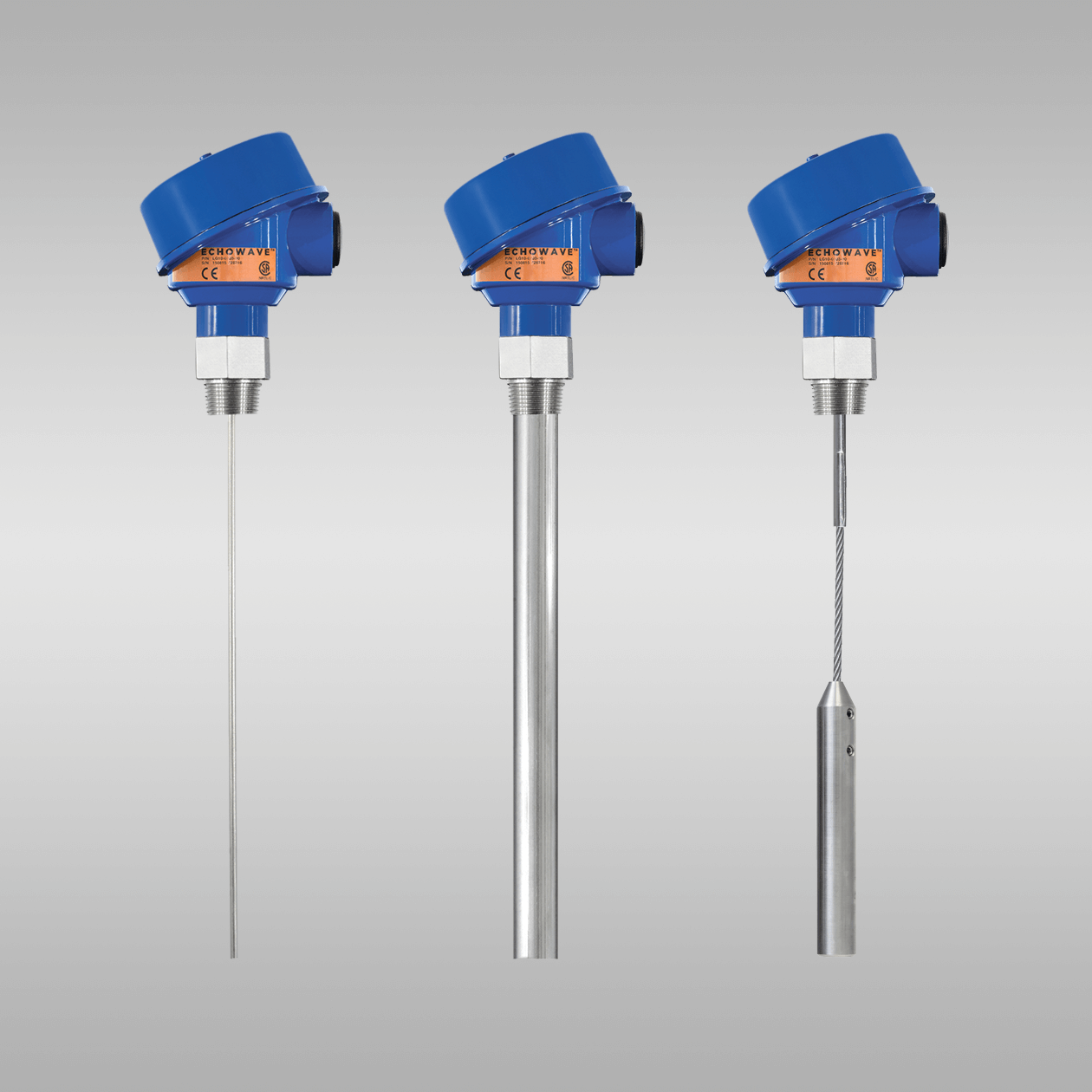

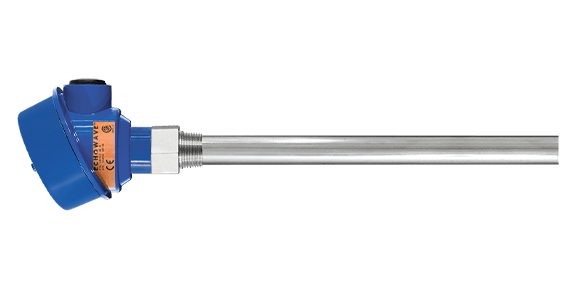

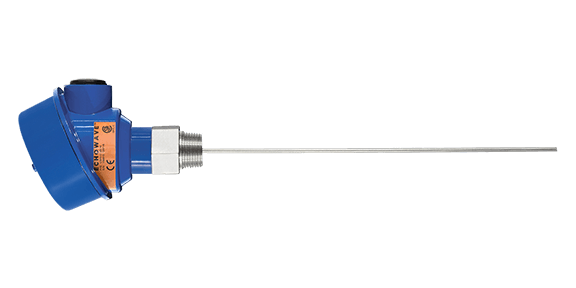

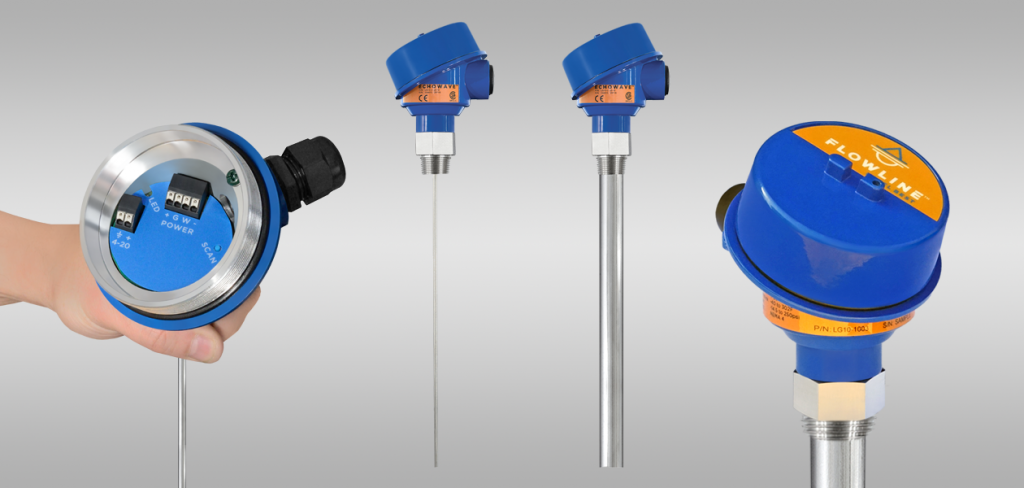

Offered in three probe types, the general purpose guided wave level transmitter provides continuous level measurement up to 18’ (5.5m) with a 4-20 mA signal output, and is configured via our free WebCal software. This liquid level sensor is applied in non-turbulent environments with foam, vapor, condensation, temperature or pressure. Select the rod or cable probe for use with clean, dirty, coating or crystallizing liquids in above grade metal or below grade tanks of any material. Select the coaxial probe for use with clean, non-coating or crystallizing liquids in above or below grade tanks of any material. Standard probe lengths may be user cut in the field. Typical applications include small bulk storage, day tank, skid or machine, IBC or drum, process tank, cooling tower and waste sumps.
FEATURES
- Offered in standard or custom probe lengths up to 18’ (5.5m)
- Configuration is easy via WebCal software and USB adapter
- Rugged 316L stainless steel probe and process mount
- 4” (10cm) dead band enables utilization of the entire tank
- Disturbance scan maps and rejects false echo signal returns
- Rugged NEMA 4 aluminum enclosure with 316L process mount
- Self diagnostics with five selectable fail-safe signal outputs
PRICING
| P/N | Description | From |
|---|---|---|
| LG10-0003-00-036 | 36″ (.9m) rod, 3/4″ NPT, w/o Fob | $880.00 |
| LG10-0003-01-036 | 36″ (.9m) rod, 3/4″ NPT, w/Fob | $945.00 |
| LG10-0013-00-036 | 36″ (.9m) rod, 3/4″ G, w/o Fob | $1,080.00 |
| LG10-0013-01-036 | 36″ (.9m) rod, 3/4″ G, w/Fob | $1,145.00 |
| LG10-0003-00-072 | 72″ (1.8m) rod, 3/4″ NPT, w/o Fob | $980.00 |
| LG10-0003-01-072 | 72″ (1.8m) rod, 3/4″ NPT, w/Fob | $1,045.00 |
| LG10-0013-00-072 | 72″ (1.8m) rod, 3/4″ G, w/o Fob | $1,180.00 |
| LG10-0013-01-072 | 72″ (1.8m) rod, 3/4″ G, w/Fob | $1,245.00 |
| LG10-0003-00 | 118″ (3m) rod, 3/4″ NPT, w/o Fob | $1,080.00 |
| LG10-0003-01 | 118″ (3m) rod, 3/4″ NPT, w/Fob | $1,145.00 |
| LG10-0013-00 | 118″ (3m) rod, 3/4″ G, w/o Fob | $1,280.00 |
| LG10-0013-01 | 118″ (3m) rod, 3/4″ G, w/Fob | $1,345.00 |
| LG10-1003-00-036 | 36″ (.9m) coaxial, 3/4″ NPT, w/o Fob | $1,180.00 |
| LG10-1003-01-036 | 36″ (.9m) coaxial, 3/4″ NPT, w/Fob | $1,245.00 |
| LG10-1013-00-036 | 36″ (.9m) coaxial, 3/4″ G, w/o Fob | $1,380.00 |
| LG10-1013-01-036 | 36″ (.9m) coaxial, 3/4″ G, w/Fob | $1,445.00 |
| LG10-1003-00-072 | 72″ (1.8m) coaxial, 3/4″ NPT, w/o Fob | $1,280.00 |
| LG10-1003-01-072 | 72″ (1.8m) coaxial, 3/4″ NPT, w/Fob | $1,345.00 |
| LG10-1013-00-072 | 72″ (1.8m) coaxial, 3/4″ G, w/o Fob | $1,480.00 |
| LG10-1013-01-072 | 72″ (1.8m) coaxial, 3/4″ G, w/Fob | $1,545.00 |
| LG10-1003-00 | 118″ (3m) coaxial, 3/4″ NPT, w/o Fob | $1,380.00 |
| LG10-1003-01 | 118″ (3m) coaxial, 3/4″ NPT, w/Fob | $1,445.00 |
| LG10-1013-00 | 118″ (3m) coaxial, 3/4″ G, w/o Fob | $1,580.00 |
| LG10-1013-01 | 118″ (3m) coaxial, 3/4″ G, w/Fob | $1,645.00 |
| LG11-2003-00 | 216″ (5.5m) cable, 3/4″ NPT, w/o Fob | $1,500.00 |
| LG11-2003-01 | 216″ (5.5m) cable, 3/4″ NPT, w/Fob | $1,565.00 |
| LG11-2013-00 | 216″ (5.5m) cable, 3/4″ G, w/o Fob | $1,800.00 |
| LG11-2013-01 | 216″ (5.5m) cable, 3/4″ G, w/Fob | $1,865.00 |
WebCal Software
WebCal software is a PC utility program that enables users to easily configure and test compatible Flowline level sensors to their measurement and control requirements. Download your free copy.
DOCUMENTATION
SPECIFICATIONS
Range: Rod & coaxial: 9.8’ (3m), cable: 18’ (5.5m)
Accuracy: ± 3mm
Dead band: Top: 4” (10cm), bottom: 2” (5cm)
Repeatability: < 2mm
Resolution: < 2mm
Configuration: WebCal™ PC, Windows®, USB 2.0
Supply voltage: 10-30 VDC
Max. consumption: < 50mA @ 24 VDC
Signal output: 4-20mA, 3-wire
Signal fail-safe: 4mA, 20mA, 21mA, 22mA or hold last
Dielectric: > 1.8
Process temp.: F: -40º to 302º, C: -40º to 150º
Ambient temp.: F: -40º to 185º, C: -40º to 85º
Pressure: -14.5 to 250 PSI, (-1 to 17 bar)
Enclosure rating: NEMA 4
Encl. material: Aluminum
Feed through mat.: 316L SS & PEEK
Conduit entrance: (1) 1/2” NPT connector
Probe material: Rod: & coaxial: 316L SS, cable: 316 SS
Process mount: 3/4” NPT (3/4” G)
Classification: General purpose
Certification: CSA, NRTL
Compliance: CE, CRN, RoHS
PRODUCT SELECTION
If you want help in selecting a sensor for your application, please submit a Level Questionnaire. An engineer will review your requirements and suggest a product solution via email.
