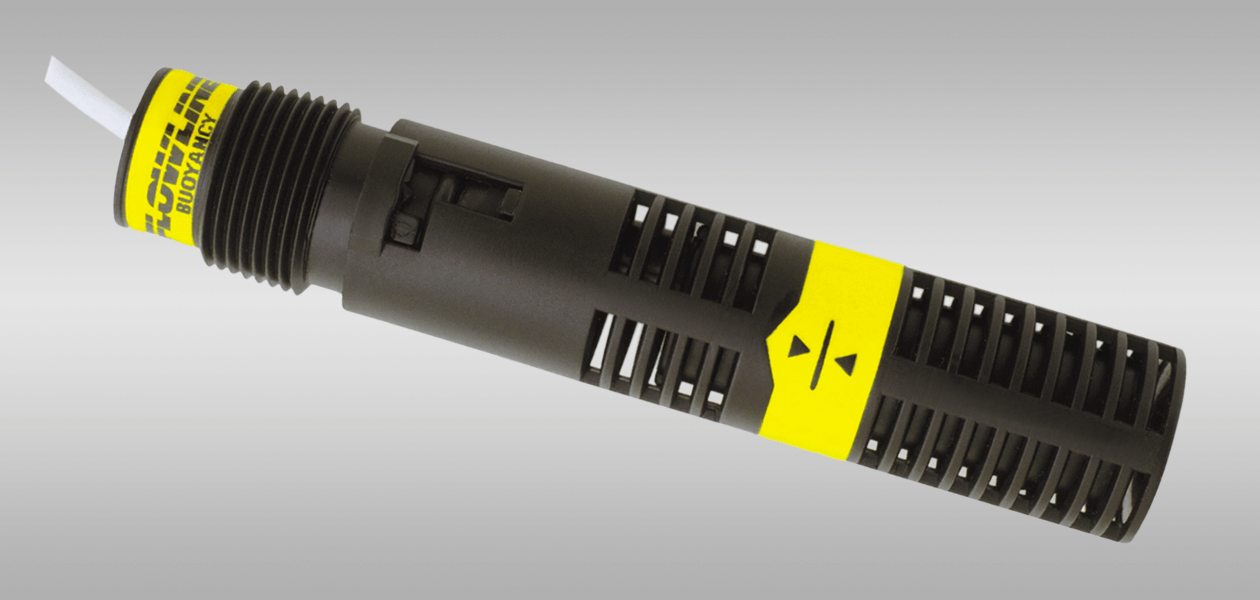

Switch-Tek™ LV10 Vertical Buoyancy Point Liquid Level Switch

More Photos Switch-Tek LV10 Vertical Buoyancy Point Liquid Level Switch

APPLICATION

The general purpose float point liquid level switch provides high or low liquid level detection of relatively clean water and chemical solutions with a 15VA reed switch output. Media examples include potable water and boric acid. The baffle body eliminates level switch chatter caused by turbulence. The submersible PP or PVDF level switch sensor is mounted vertically inside the tank, and connected to a PLC or relay controller.

FEATURES

Baffle body and stabilized float dampen out switch chatter
Submersible PP or PVDF sensor and cable for corrosive liquids
15VA dry contact selectable NO or NC state via wiring selection
Compatible with Smart Trak and Switch-Pak installation fittings

PRICING

P/N	Description	From
LV10-1301	GP buoyancy level switch, PP, 1 reed, 3/4″ NPT	$167.00
LV10-1351	GP buoyancy level switch, PP, 1 reed, 3/4″ Rp	$167.00
LV10-5301	GP buoyancy level switch, PVDF, 1 reed, 3/4″ NPT	$335.00
LV10-5351	GP buoyancy level switch, PVDF, 1 reed, 3/4″ Rp	$335.00

COMPATIBLE ACCESSORIES

Indicators & Controllers

P/N	Description	From
LC40-1001	GP level switch controller, 120/240 VAC, 10A relay, PP	$285.00
LM92-1202	Single NEMA box, 35mm rail, windowed, PC	$520.00
LM92-2202	Double NEMA box, 35mm rail, windowed, PC	$552.00
LC10-1001	GP level switch controller, 120/240 VAC, 16A relay, PP	$300.00
LC06-1001	GP level switch junction box, 6-pole terminal strip, PP	$90.00
LC95-2001	Power supply, 100-240 VAC, 24 VDC @ 0.45A	$335.00

Installation Fittings & Adapters

	P/N	Description	From
Switch-Pak fitting assemblies can be factory built to order or purchased as components and assembled in the field. To assemble your own, order the appropriate kit based on your thread and material requirements. PP and PVDF kits are thermal socket welded together with a matching pipe section in between that’s sourced separately. PVC kits and pipes are solvent welded together. To complete the assembly, order one compact junction box or relay controller for the top and one level switch for the bottom.
	LM45-1001	Switch-Pak fitting kit, 2″ NPT plug with 3/4″ NPT nipple, 3/4″ NPT pipe adapter, PP	$55.00
	LM45-1061	Switch-Pak fitting kit, 1 1/2″ G plug with 3/4″ Rp nipple, 3/4″ Rp pipe adapter, PP	$55.00
	LM45-5001	Switch-Pak fitting kit, 2″ NPT plug with 3/4″ NPT nipple, 3/4″ NPT pipe adapter, PVDF	$104.00
	LM45-5061	Switch-Pak fitting kit, 1 1/2″ G plug with 3/4″ Rp nipple, 3/4″ Rp pipe adapter, PVDF	$104.00
	LM45-7001	Switch-Pak fitting kit, 2″ NPT plug with 3/4″ NPT nipple, 3/4″ NPT pipe adapter, PVC	$55.00
	LM45-7061	Switch-Pak fitting kit, 1 1/2″ G plug with 3/4″ Rp nipple, 3/4″ Rp pipe adapter, PVC	$55.00
Smart Trak fitting assemblies can be factory built to order or purchased as components and assembled in the field. To assemble your own, order the appropriate kit based on your required fitting length (standard lengths are easily cut to size). Then order one switch car kit for each level switch point to be installed on Smart Trak. To complete the assembly, order one compact junction box (1-4 switches) or relay controller (1-2 switches) for the top and one level switch for each switch car kit.
	LM10-1201	Smart Trak fitting kit, 2′ track, 2″ NPT plug with 3/4″ NPT nipple, PP	$140.00
	LM10-1261	Smart Trak fitting kit, 2′ track, 2″ G plug with 3/4″ Rp nipple, PP	$140.00
	LM10-1401	Smart Trak fitting kit, 4′ track, 2″ NPT plug with 3/4″ NPT nipple, PP	$223.00
	LM10-1461	Smart Trak fitting kit, 4′ track, 2″ G plug with 3/4″ Rp nipple, PP	$223.00
	LM10-1601	Smart Trak fitting kit, 6′ track, 2″ NPT plug with 3/4″ NPT nipple, PP	$306.00
	LM10-1661	Smart Trak fitting kit, 6′ track, 2″ G plug with 3/4″ Rp nipple, PP	$306.00
	LM10-1801	Smart Trak fitting kit, 8′ track, 2″ NPT plug with 3/4″ NPT nipple, PP	$389.00
	LM10-1861	Smart Trak fitting kit, 8′ track, 2″ G plug with 3/4″ Rp nipple, PP	$389.00
	LM10-1001	Smart Trak fitting kit, 10′ track, 2″ NPT plug with 3/4″ NPT nipple, PP	$473.00
	LM10-1061	Smart Trak fitting kit, 10′ track, 2″ G plug with 3/4″ Rp nipple, PP	$473.00
	LM30-1001	Smart Trak level switch car kit, 3/4″ NPT, PP	$42.00
	LM30-1061	Smart Trak level switch car kit, 3/4″ Rp, PP	$42.00

See All

	P/N	Description	From
	LO10-1305	GP optic leak switch, 12-36 VDC, 1A relay, PP	$210.00

SIMILAR PRODUCTS

Smart Trak AX23

GP,
120/240 VAC,
16A latching relay

$1,060.00

Switch-Tek LP15

GP capacitance switch,
12-36 VDC,
1A relay, PP

$335.00

DOCUMENTATION

Data Sheet | Manual | 3D Model | Company Brochure

SPECIFICATIONS

Orientation: ± 20º vertical

Accuracy: ± 2mm in water

Repeatibility: ± 1mm in water

Specific gravity: 0.8 minimum

Contact type: (1) SPDT reed

Contact rating: 15 VA, 0.25A maximum

Contact output: Selectable NO / NC

Process temp.: F: -40° to 176°, C: -40° to 80°

Pressure:: 25 psi (2 bar) @ 25º C, derated @ 1.667 psi (0.113 bar) per ºC above 25º C

Sensor rating: NEMA 6 (IP68)

Sensor material: -13X1: PP, -53X1: PVDF

Cable jack. mat.: -13X1: PP, -53X1: FEP

Cable type: 3-conductor, shielded

Cable length: 10’ (3m)

Process mount: 3/4” NPT (3/4” Rp)

Classification: General purpose

Compliance: CE, RoHs

PRODUCT SELECTION

If you want help in selecting a sensor for your application, please submit a Level Questionnaire. An engineer will review your requirements and suggest a product solution via email.
